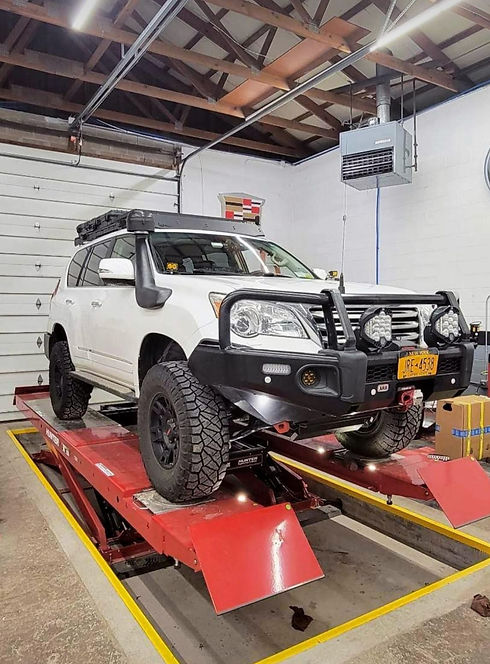

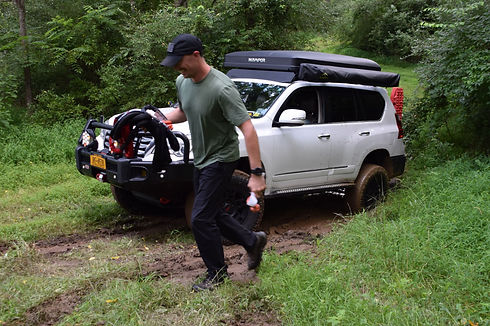

2012 Lexus GX460 Premium

Year/Make/Model:

2012 Lexus GX460 Premium 4.6L V8(1URFE)

Miles on Vehicle:

168,000+

Large Expeditions Completed:

SCAR, MABDR, NEBDR, OOAT, El Camino Del Diablo, & Mojave Road

(not to mention 100's of smaller trips)

Why I Love it:

The Lexus GX460 is an amazing overland platform. The GX460 shares a platform with the Toyota Prado 150, FJ Cruiser, and 5th Gen Toyota 4runner. Big differences are the addition of the 1UR-FE 4.6L V8 and a 6-speed automatic transmission.


Of course, there are also the additions of creature comforts on the inside. Like heated and cooled premium leather seats, a heated steering wheel, and a Mark Levinson sound system. Being a luxury brand, the Lexus also came with countless safety features like radar cruise control, lane departure warning, automatic high beams, and wipers.



The GX460 was also graced with full-time 4wd, a center locking differential, a two-speed transfer case, ATRAC, Hill-Descent Control, Crawl-Control, Multi-Terrain-Select, and the KDSS sway bar system. The combination of this provided a capable, comfortable, and safe platform to drive LONG distances without thinking twice.

All of this provided a great foundation to build on. The 4runner and Prado 150 are well known for their reliability and capability, the GX460 being the pinnacle of the platform. After market support in 2019, when I bought the GX460, was growing at a rapid pace. In the current day, the support is very strong, with the sky being the limit on what direction to go with your build.

Detailed Build List & Equipment

Disclosure:

Some of the links below are affiliate links to Amazon. This means if you purchase through these links, I may earn a small commission—at no additional cost to you. These commissions help me continue to provide valuable content, test more gear, and, of course, keep the tank full for more adventures!


Drivetrain

Suspension, Wheels, Brakes, Tires, and Driveline

Suspension:

Front:

Ride Shocks 2.5" DPA Coilovers

Custom Tuning for my weight
Eibach 700lb Springs

Dobinsons Front Adjustable Billet Upper Control Arms

SuperPro Front Double Offset Lower Control Arms

Perry Parts AB2F Front Bump Stops(34"+ Tires)

Toyo-Steering Front Spindle Gussets

KPOFFROAD Cam Tab Gussets w/ Octagon Cam Locks

Rear:

Ride Shocks 2.5" DPA Rear Shocks (0-3" Lift)

Ride Shocks Custom Tuning for my weight

Dobinsons Heavy Load Rear Springs

Dobinsons Adjustable HD Panhard Bar

Dobinsons Adjustable Lower Trailing Arms

Dobinsons Adjustable Upper Trailing Arms

Dobinsons Rear Airbag Delete Kit

Eimkeith Panhard Bar Correction Weld-On Bracket

Perry Parts AB7R Rear Bump Stops(Extended Travel)

FJ Toyman Rear Lower Shock Mount Skids

Wheels:

RRW RG6-H MonoForged Beadlocks 17x8.5 -12offset (x5)

Tires:

​Mickey Thompson Baja Boss AT 35x12.50r17​ (x5)

Brakes:

DBA T3 4000 Rotors
EBC Extra Duty Pads

Gears:

Nitro Gears 4.56​

Rear Differential Breather Extension(homemade)

Lockers:

​Eaton E-Lockers Front & Rear

Fluids:

​OEM - Transmission, Transfer Case, Coolant, & Power Steering

Motul - Engine (8100 Power 0w-20), Brakes (DOT 5.1)

ECU/TCU Tune:

YotaWerx BlackHawk Active-Duty Premium Octane


Armor

Bumpers, Skid plates, and Rock Sliders

Front Bumper:

ARB Summit Bumper - Imported from Australia - Designed for the Prado 150

Rear Bumper:

Victory 4x4 Rear Strike Bumper

Victory 4x4 Dual Swing Outs

Victory 4x4 Spare Tire Holder w/ License Plate Relocation

Victory 4x4 Traction Board Mount

Victory 4x4 Single Jerry Can Mount

Skid Plates:

​RCI Steel Engine, Transmission, Transfer Case, and Gas Tank

Bud-Built Steel Rear Differential Skid Plate

Sliders:

Expedition One Steel Sliders




Recovery

For when things didn't go as planned

Winch:

Comeup Seal Gen3 12.5rs Slim

Fairlead:

FACTOR55 Offset

Winch Hook:

FACTOR55 Flatlink E (Expert) in Red

Recovery Points:

ARB Front Recovery Points(From Prado 150)

Victory 4x4 Rear Bumper



Straps, Slings, Pulleys, ETC:

C4RS 1"x30' Kinetic Rope ​32,750lbs

C4RS 1/2" Soft Shackle 47,200lbs (x2)

ARB Recovery Gloves

Ironman 4x4 Leather Gloves

ARB Tree Trunk Protector 16' 26,500lb

Ironman 4x4 Snatch Strap 30' 17,600lbs

ARB Winch Line Pulley 20,000lbs

3/4" Metal Shackles (X3)

Ironman 4x4 Rear Hitch Recovery Block(To help others)

Recovery Boards:

Maxtrax MKII (x4 in red)

Tool Kit:

BOXO USA Heavy Duty King of Hammers Trail Kit




Electrial

Power Management and Supply

​Main Switch Panel:

Switch Pros SP9100

Communications:

Midland Mobile MXT275

Zoleo Satellite Communication

Navigation:

iPad Mini with Gaia GPS, OnX Offroad, and Waze

Garmin Tred XL Overland(In Testing Phase)

Batteries and Management:

DieHard 24F-AGM (Engine/Starter)

Voltage Booster(set to high)

SDHQ Billet Terminals

DIY 205ah Lithium Battery with Overkill Solar BMS (House)

REDARC Manager 30

Garmin PowerSwitch(In Testing Phase)

Solar:

BLUETTI Portable 200w Foldable Solar Panel

Fridge:

ICECO VL60 Dual-Zone Fridge/Freezer

Inverter:

BESTEK 1000w Pure Sine Wave Inverter




Overland

Equipment and Modifications for Quality of Life and Self Sustainted Travel



Roof Rack:

Prinsu & Optional Grab Handles w/ Integrated Lights

Storage Shelf and Molle Panel:

Victory 4x4

Roof Top Tent:

iKamper Skycamp 3.0

Awning:

Overland Pros Wraptor 6k 270 Degree

Air Compressor:

ARB On-Board Dual Compressor

Rear Drawers:

Dobinsons with filler panels

Snorkel:

Dobinsons

Sy-Klone 9100 Air Precleaner

Auxiliary Fuel:

Long Range America Fuel Tank (auxiliary, 27 gallons)
